Revit
2014, what’s new? What’s been improved? So these are the highlights,
but like any release of Revit you will find minor tweaks here &
there, some which get documented, others that don’t, so be on the look
out! I have reviewed the architectural & general platform
enhancements, however I have also listed the structural & MEP
improvements, but do not go into detail in this review.
- Displaced Views
- Dockable Windows Framework & Enhancements
- Material UI overhaul
- Non rectangular crop regions
- Room calculation Point
- Schedules
- Selection enhancements
- Split Elevations
- Temporary View Templates
- View navigation performance
- Multi Selection - bring to front & send to back
- Stairs & Railings
- Double click to edit
- Point Clouds
The specific structural improvements include:-
- Multi-Reference Annotations
- Structural Analytical Model Improvements
- Reinforcement Rounding
- Rebar Constraints
- Welded Wire Mesh Constraints
- Enhanced Rebar Shapes
- Rebar Length Calculation for UK Shapes
The MEP improvements include:-
- CSV File Removal - Ability to embed CSV data into a family.
- Divide System.
- Air Terminals on Duct - Ability to place Air Terminal families directly on Duct segments.
- Plumbing Template
- Cap Open Ends
- Angle Constraints
Building Performance Analysis
- Energy
Analysis for Architectural Building Elements - Ability to automatically
generate an Energy Analysis Model from a typical Revit model made of
architectural building elements.
- GBS Analysis App Feature
Displaced Views
Displaced
views are an exciting new feature which literally allows you to rip
apart your model as an exploded view. The clever thing here is that any
displacement of components is only affected in that view & not the
whole model.
The
feature works in 3d views & perspective views only, allowing you to
create diagrammatic assembly views of how the building goes together.
The concept is very easy to implement. Go to a 3d view, select a few
elements, then choose the displacement feature from the modify tab >
create. Then in canvas use the 3d widget to drag the components away
from the main model, it’s that easy. If you are not happy with their
position, a reset button allows you to return the elements back to their
original location. The path feature allows you to automatically draw a
line from the original position of the elements to its displaced
location. You can control the linestyle of this line from objects styles
& visibility graphics.
Another
thing about the path feature which may not be that obvious is that
there are 2 path style types. A straight line (the default) & a
jogged line type, which is useful when you need to drag the elements
further away from the model for clarity.
Dockable Windows Framework & Enhancements
When
you are using Revit you just can’t get enough screen real estate. You
decide to get 2 monitors, but space always seems to be at premium. I am
not sure why, but I guess it’s natural when you have a multi document,
multi view application. In previous releases of Revit you could dock the
project browser, properties palette, system browser & reconcile
hosting browser in different locations but they always docked adjacent
to one another or at various positions around the screen. Revit 2014 now
allows you to dock each window to combine them as tabs at the bottom of
dialog windows. OK, it’s not a massive enhancements & auto-hide
would have been a nice addition as well, but this new window framework
structure will certainly benefit those that are tight for screen space
or utilize a-laptop.

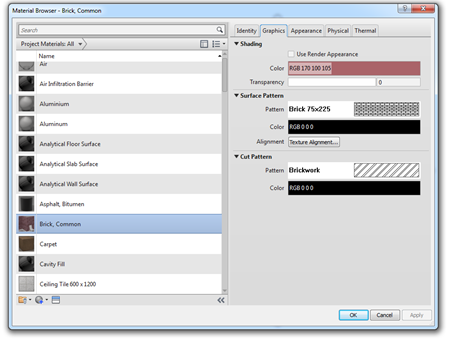

Materials
So
after last year’s fiasco with the material UI, Autodesk decided to go
back to the drawing board. A good friend of mine & fellow Revit
Guru, Aaron Maller literally lost hours of sleep trying to get his head
around the Revit 2013 material user interface to make it work like 2012!
If you know Aaron, buy him a beer & he will literally rant for
hours about the mess which is the Revit 2013 material UI. I am not sure
what Autodesk were thinking, but I am so glad to say that the 2014 UI is
soooooo much better. Everything is obvious, in a tabbed layout dialog.
The UI is easier to navigate making materials easier to locate &
select. In 2013 the material browser & editing dialog boxes where
separate which, was the core issue to the problem! This made the whole
process of material editing unbelievably frustrating as workflow process
was confusing. With both material browser & editing now merged back
into one single common dialog, stability & common sense has
returned to the material editing process. Yes!
Non Rectangular Viewports
So
non rectangular viewports have been on my Revit wish list for some
time. In Revit 2014 we now have this added functionality for view crop
regions and callouts. In essence the user can customise the shape of the
crop region using Revit sketching tools.
Select
the crop region, then choose the Edit Crop tool from the ribbon &
sketch away. But before you get too excited, you are still only limited
to rectangular shapes, no curves are arcs my friends. This feature will
work on any crop region including plans, ceilings plans, elevations,
sections, detail & section callout views.
Room Calculation Point
Once
you have been using Revit for some time, you recognise that Revit needs
to start to think a little smarter; it should know where things are.
Whether you think software should be smart, is a debate for another day.
But the introductory of a Room calculation point setting for family
types which are room aware such as doors, furniture, casework,
speciality equipment and generic models starts to help. This new
function allows families which are placed in a project to know where
they belong.
For
instance sometimes, a piece of geometry might be located outside a room
or space, which results in no values being reported to where the
element actually is. The new Room calculation point allows the user to
specifically move the location of the calculation point to a desired
space within a model so that the element then knows where it belongs and
can report this when scheduling.
Schedules
Schedules;
What would we do without schedules in Revit? They provide us with
access to data in a way which was not possible using traditional CAD
drafting approaches. I would suggest that anybody who is serious about
building information modelling will know the power & possibilities
that Revit scheduling functionality offers. Scheduling gives you access
to data which you can utilise in many, many ways. We can capture
integrated data; we can use schedules to input data. Neither the less,
scheduling within Revit was not without its limitations, but Revit 2014
sees a major overhaul of the scheduling functionality. The interface for
creating schedules in Revit remains the same, although new categories
have been opened up, so we can now schedule architectural columns,
detail items, entourage, generic models, grids, levels, pads, roof
soffits, structural beam systems, structural area reinforcement,
structural path reinforcement and structural fabric area.
Another
nice minor enhancement is the ability to schedule phases created &
demolished. However, more importantly we are provided with far more
control over how we can format schedules. Text styles can be used to
control the formatting of titles, headers and data within a schedule.
Cells and text appearance can be overridden for cells in titles sections
and columns. The Schedules are far more aligned with an Excel type
appearance, so what you see is what you get, with more alliance between
the schedule view & what you actually place on a sheet. You will
find a new ribbon interface allows you to control the appearance of the
schedule and if you understand the basics of Excel style column
formatting, then this is going to be a total breeze for you to learn and
implement.
Selection Enhancements
I
believe one of the biggest challenges any new user has when starting to
work with Revit is the way you select elements. Those that have been
using Revit for some time, have learned to live & adapt to Revit
element selection peculiarities. But I have seen countless occasions
when Revit newbies select elements & screw things up. No fault of
their own, it’s just a different process from what they are normally
used to. Yet Revit does not make it easy during the transition process.
To improve the way you can access & select elements, Revit 2014 has
introduced a few improvements adding to what has always existed. There
are now four selection options, which can be accessed via the modify
tool or via the status bar. Each options has two states, either active
or in-active. The options included Select Links, Select Underlay
Elements, Select Elements by face, Drag elements on selection. With the
select links function, if this behaviour is not enabled & you use
the modify & move tools, this stops you accidentally selecting links
or CAD linked files. Select underlay elements, again if this is not
enabled, then you can’t select, modify or move underlayed elements.
Select
elements by Face, now this is a biggie for me. With this feature
enabled you can select a face of an element or by clicking at the edge.
This now makes the whole process of editing, say a floor, a lot easier
as you can select the face rather than having to grab a bunch of
elements & filtering. If you don’t have this feature enabled, then
it’s as it was before, you need to click on the edge of element or
filter & select. Drag elements on Selection replaces what was press
& drag. With the feature enabled, you hover over the element, press
down the mouse & drag. Revit will then move the element. If this
feature is not enabled. If you hover over a model elements, AC point,
callout, grid, section, scope box or detail, pressing and dragging will
result in the element NOT moving. It should also be noted that the
settings are stored per user in the Revit.ini, so can be set as part of
your deployment.
Split Elevations
Not
sure this is noteworthy, but we have been able to do split sections for
some time. But the functionality has been extended to elevations,
allowing us to do split elevations. Now before you get over excited,
it’s not what you think it is! It the same as the section tool, that’s
it. What would have been very nice to see is the ability to unwrap
elevations to create true elevation representations!
Temporary View Properties
Revit
2013 introduced some welcome improvements to view templates; the
Temporary View Properties feature on 2014 takes this a little further.
In the view control bar you are provided with access to Temporary View
Properties. What this feature does is always you to change the view
properties of a view without impacting the saved view state. The concept
behind this is to potentially reduce the need for working views as you
can quickly enable a Temporary View, apply the view template to better
understand the impact of the view template without actually having to
apply it. You can switch between different view templates which you have
created & once you have finished, just select the reset feature to
go back to the original state of the view. If you do enable the temp
view, it has no bearing on the view for printing & also has
influence on the view when using worksharing.
Perceived Performance
If
I had a pound or even a dollar for how many times I’ve heard users
complain about how slow Revit is at times, I’d be a very rich man. The
reality is, on some tasks Revit can be slow, but then if you consider
what is happening under the hood, then maybe you might assess the
situation differently. But then again, the reality is we want everything
instantly! We want out email now! We want everything on tap, on demand
& we no longer accept waiting. Over recent years we have seen
multi-threading functionality introduced to some aspects of Revit.
Speaking with the development team, it’s not a case of just flicking a
few switches & tweaking the code to make Revit suddenly become a
super multi-threaded wonder app. It’s a complex problem, due to the way
Revit works. Saying that, one area which Revit certainly needed a kick
was on screen redraws when zooming, panning & orbiting a model. So
the Revit dev team have made some tweaks to improve graphic performance
by automatically turning off graphic intensive effects during view
navigation. This works in 2d & 3d. What actually happens is that the
graphic effects are suspended during camera manipulation & then
instantly redrawn to the screen once you finish the operation. It’s a
little disconcerting at first, but once you get us to it you will value
this improvement, Revit certainly feels quicker.
Multi- selection
A
minor enhancement, but a vital one, is the proper implementation of the
Bring to Front / Send Back ward tool. This now works as you would
expect it. When you select multiple elements, be it detail elements or
images you can reorder them correctly.
Stairs & Railings
As
this review is typically biased towards the architectural enhancements,
we will look at these. With Revit 2013, we saw the introduction of the
new component based stair as well as enhancements to the railings. Revit
2014 sees the component stairs developed even further with a few minor
tweaks to the railings. The way a stair joins a floor or slab has been
improved. Any precast stair can now be join to a floor or slab. You can
now quash the additional riser created in a plan representation when a
monolithic stair meets a landing.
There
have been developments made to the way you manipulate landings. Each
landing, when selected, has controls to each edge which makes the
process of editing the landing a lot easier.
When
you draw a stair, two additional location line options are provided.
You now have exterior support left & exterior support right as well
as actual run width settings. These can be set in the options bar when
creating the stair.
Autodesk
put a lot of work into how stairs were represented with the component
based stair. But as ever, things can always be improved. With 2014, the
stair path arrow can now be displayed at top of landing. With the
monolithic stair, the plan representation stair no longer displays an
additional risers at half landings. The way snaps work with stairs also
receives some advancement. For example, we can now have a parallel snap,
allowing us to reference other elements such as reference planes,
walls, beams when you are creating straight stair runs. Another snap
enhancement is the ability to parallel snap to riser lines when dragging
the direct manipulation controls of a landing. All these snaps just
provide a better fit / finish when working with the stair creation
process.
One
of the first things I noticed with component based stairs in Revit
2013, was the loss of temporary dimensions. Love or hate them, they are
fundamental to the Revit modelling process in my humble opinion.
Temporary dimensions are your best friend when making changes or tweaks
to elements. With Revit 2014, Autodesk dev temp have listen to user
feedback & component based stairs get temporary dimensions to
control landing size, component position, stair width & radius of
spiral stairs.
Sadly
we haven’t seen any further enhancements to railings in 2014, but we do
get some defects fixed, such as if end with riser is unchecked the
railing will now be parallel with the stair run. Handrails would
disappear in some views, this has been addressed.
Double Click to Edit
Maybe,
I’m old school, but 2013 saw the introduction of double-click
functionality to edit certain elements, after many user requests. But
with any enhancements, sometimes there are trip hazards. Users who are
rather trigger happy with double clicking end up going down rabbit holes
as they end up editing something they didn’t mean to. But with care
& precision, you learn to adjust. In line with functionality
introduced into Vasari as well as Revit LT, we can now edit the
following elements by double clicking.
| Element type | Double-click behaviour |
| Assemblies | Edit assembly mode |
| Schedules on Sheets | Open schedule view |
| Views on sheets | Activate view |
| Wall(EditProfile) | Edit profile |
| Floor(EditBoundary) | Edit boundary |
| Ceilings(EditBoundary) | Edit boundary |
| Roof (Footprint) | Edit boundary |
| Roof (Extrusion) | Edit boundary |
| Slab (Edit Boundary) | Edit boundary |
| Beam System (Edit Boundary) | Edit boundary |
| Railing | Edit railing |
| Stairs | Edit stairs |
| Edit Extrusion (Form) | Edit form |
| Edit Revolve (Form) | Edit form |
| Edit Sweep (Form) | Edit form |
| Edit Swept Blend (Form) | Edit form |
| Edit Blend (Default to edit Base) | Edit base |
| Truss (Edit Profile) | Edit profile |
| Rebar | Edit rebar |
| Reinforcement | Edit rebar |
| Opening Cut | Edit sketch |
| Filled Region | Edit sketch |
| Revision Cloud | Edit sketch |
| Split Face element | Edit sketch |
So
to protect those that may be a bit too hasty when using the double
click functionality; in the options, the user can now customise the
double click settings.
One
other minor, but useful tweak is when editing a parameter in a tag, a
parameter takes priority when you double click on a parameter label.
Point Clouds
Laser
scanning & data capture is now common place to the BIM process.
There are plenty of surveying firms & even contractors using laser
scanning equipment, as the cost of ownership has reduced, to capture
large quantities of data about buildings as point clouds. This data,
albeit it huge in size, is being used for modelling of existing
conditions as well as cross referencing the Building Information Model
(design intent) against what is built on site. Revit has had the ability
to link in point clouds for some time, but Revit 2014 sees the
implementation of a completely new engine.
What
this is, is the inclusion of the Alice labs acquisition within Revit.
What I have tested is astonishingly fast, throwing a 5 gig cloud data
file around in Revit was amazingly smooth. Linking the point cloud into a
Revit project is exactly the same, but there are more point cloud file
types available. You do need to index the point cloud data structure for
the engine before loading it in. If you select a raw dataset to be
inserted into Revit, you will be asked to index the data. Once indexed
the resulting RCS file can be linked into a Revit project. Crop regions
& sections box tools allow you to control the visibility of the
point cloud. But with visibility graphics you can also override the
colour mode of the point cloud.
There are 5 options available for colour modes of the point cloud.
<No Override>: This will display the point cloud in the colours specified in the source file, if they are available.
Single Color: will displays all points in the point cloud in a single colour that you can specify.
Elevation: will
display the points in the point cloud using a gradation of colour
between the 2 colours (Max Elevation and Min Elevation) that you can
specify.
Intensity: displays the points in the point
cloud using a gradation of colour between 2 colours (Max Intensity and
Min Intensity) that you can specify.
Normals: displays
the points in colours relative to the direction of the point normal (the
direction of reflectance of points when initially captured). For
example, all points with a normal direction "up" will have a consistent
colour.
You can still snap to planes detected within the point
cloud when using snap functionality, but we still have some way to go
before we can start to automatically convert point cloud data into smart
objects. This will come, but for now just being to reference reality
into a BIM environment starts to close yet another gap in the BIM
process.
Some of the other paraphernalia
So
included below are few other enhancements which are worth knowing about.
Not earth shattering, but they all go a long way to the fit &
finish process of existing functionality.
When you divide a
surface in the conceptual massing environment, you can adjust the u/v
angle with the align tool. You can specify a default divisions to
surface settings, which will be retained in the project for subsequent
uses of the divide surface tool.
This
one I am genuinely excited by. When you import a solid into a family,
you have the ability to fully explode the solid. What this actually does
is turn this into an element which you can actually do something with!
Whilst you can’t actually edit the form, you can manipulate the
resulting freeform elements with direct manipulation handles. You can
also cut, join the geometry with form functionality tools. Now all we
need is Revit to be able to read parameters from other tools!
When
working in the conceptual massing environment, you can use a 3d start –
end – radius Arc, which creates a 3d arc. The points of the arc can be
hosted on reference geometry.
To solve a particular COBie
requirement, you can allow parameters to vary between groups. You can
control values so they are aligned per group type or values can vary by
group instance.
There
are a raft of minor tweaks to interoperability. Substantial work has
taken place to ensure IFC export gets IFC certification in accordance
with buildingSMART international standards requirements. DWF files now
support textures, line patterns, lineweights, colours as well as sun
paths. DWG / DXF export sees further improvements to how Revit
dimensions export to AutoCAD. When a DWG or DXF file is linked into
Revits project environment, import / links only list the views the
imported / linked file appears in via the visibility graphics dialogue
box. If you delete a view with a linked DWG file you can now
re-establish a new reference view, rather than having to remove the
linked DWG file & then re-link it in.
One other minor, yet
critical improvement is the ability to control dual units in dimensions.
Any dimension can display both units say metric & imperial. Just by
simply going to the dimension style & enabling Alternate Units,
then picking the Alternative Units Format you can display two different
dimension formats in a dimension string.
Summary
So
here endeth this year’s round up / sermon of new Revit functionality
for the release of 2014. What do I think? Good…..actually very good. I’m
not just saying that; there is some honest improvements to aging
functionality which needed to be modernized as well as bundle of items
which I would refer to fit & finish functionality. Sometimes you
need that, so you can take stock and improve the whole user experience. I
really like the displaced views tool, that’s a cracking enhancement in
my opinion & schedule functionality update is very much welcomed.
Alignment with how excel works & functions, is very nice. Revit 2014
feels snappier and smoother in operation. But…. there is always a
“but”…..I want to see developments to site tools, nothing as dynamic as
say Civil3d, just the ability to model proper roads, pavements &
terrain. We need better ways to create & control railings &
custom railings. I never thought I would say this, but text formatting!
Autodesk, just do it. We talk up BIM, with plenty that are developing
models, yet deliverables still remain 2d. Disagree with me if you like,
but right now 2d information is not going to disappear anytime soon.
Improving how we link in notes & formatting of text is something we
just need to enhance to improve the overall fit & finish of the
tool. Working in perspective views, can it be that difficult? Those kids
over at Vasari team have cracked it. Non-photo realistic enhancements,
squiggled line presentation views. More graphics card GPU enhancements
& finally its time curtain walls got an injection of love. I don’t
want much do I?
Music listen to when formulating this review - Above & Beyond anjunabeats vol. 10
http://www.anjunabeats.com/anjunabeats-volume-10-mixed-by-above-and-beyond-available-now#.UT__9Rwqx8E
