Revit OpEd: Revit 2014 Web Update 2

Thanks to Steve Stafford over at Revit OpEd:  Revit 2014 Web Update 2: Revit tells me there is a new update available. At first when I clicked on the link it reported web update 1. Well I checked again and it seems to be working now. Here are some links so you don't have to wait to get told via Revit communication center (especially if it is off for you).


Revit 2014 Update 2 Links
Revit 2014 (Onebox)
Revit Architecture 2014
Revit Structure 2014
Revit MEP 2014

Dynamo in action

Another Kron work of art!

Revit 2014 Graphics issues

Thanks to the The Revit Jedi - Revit 2014 Graphics issue / disappearing ribbon:


So there is a knows issue when installing Revit 2014 on computers that already have Revit 2013 and 2012 installed, apparently the earlier versions (2013-2012) have ribbon graphics issues....

experience graphics issues with Revit 2014...problems with graphics, filled regions and then the ribbon started acting up and disappearing....


We were getting issues like this:

SOLUTION:  download and install the .net framework 4.5.

The graphics issues seem to have been resolved now.....




I'll report back with my findings.....



enjoy



Workset Rules to Live By -

Great list from: Daryl Gregoire at REVIT Rocks !

Thanks Daryl!

1. Create a new local file every day and over write the previous file.

2. Check out and borrow what you need for editing.

3. Save and sync and relinquish as often as possible or when you leave your desk.

4. Use Reload Latest to do a one way loading of other peoples changes (if nothing has changed it will tell you).

5. Don’t leave an open project hanging for any length of time (ie: on the phone, in a meeting, away for lunch etc).

6. Save, Sync and relinquish and close the local file at the end of the day.

7. If rule #6 is broken you shall be banished back to the AutoCAD world for EVER !.




Keep these in mind and save your BIM Coordinator a headache!

Revit 2013 Update Release 3

Good Reminder from Luke at What Revit wants

(updated mine last week, but have been so buried, I couldn't pass the word on....until then here is a good post from Luke )

Revit 2013 Update Release 3

Just in case you missed it, Update Release 3 is available for all 4 Revit flavours (links below).

Key fixes (as per documentation):

• Improves stability when using Hardware Acceleration, Graphics Mode.
• Improves stability when opening projects which utilize Extensible Storage.
• Improves visual fidelity between canvas and printed output.
• Improves visual fidelity of hidden lines, MEP pipe centerlines and haloed gaps when not using Hardware Acceleration, Graphics Mode.
• Improves Structural family data integrity during upgrade of project.
• Improves data integrity when canceling Save As operation.
• Improves interaction between Revit Server 2013 and Riverbed compression.
• Enables users to browse Revit Server Networks when a bound workstation cannot contact the Domain Controller.

 Dave Baldacchino informs us that this update includes the Hotfix that fixes some nasty non-WYSIWYG bugs (when printing in vector):
Anyway, I also checked that the recent Update 3 (for OneBox)incorporates this hotfix as well, so just skip it altogether and install Update 3 as fast as you can. There are separate downloads for the stand-alone packages.
via
http://do-u-revit.blogspot.com.au/2013/06/what-you-see-is-not-what-you-get.html

Link for RVT (Onebox):
http://usa.autodesk.com/adsk/servlet/ps/dl/item?siteID=123112&id=21891257&linkID=21208796

Link for RAC:
http://usa.autodesk.com/adsk/servlet/ps/dl/item?siteID=123112&id=21890399&linkID=9273944

Link for MEP:
http://usa.autodesk.com/adsk/servlet/ps/dl/item?siteID=123112&id=21891036&linkID=21208796

Link for RST:
http://usa.autodesk.com/adsk/servlet/ps/dl/item?siteID=123112&id=21890545&linkID=21208796

I guess the fact that we are receiving a significant update to 2013 after getting 2014 will be a further warning to some users to delay the 2014 rollout...

Revit 2014 - Materials Revisited_thanks AECbytes

Good read for 2014 materials - thanks to AECbytes via Dan Stine



AECbytes Tips and Tricks Issue #67 (March 28, 2013)

Revit 2014 - Materials Revisited

Dan Stine, CSI, CDT
Registered Architect and Author
The latest version of Autodesk Revit brings several new features. Most notable are the following:

• Non-rectangular crop regions
• Element selection toggles for links, underlays, pinned items, and select by face
• Energy analysis on a Revit model, not just massing
• Displace Element: new tool to create exploded views in any 3D view
• Split segment feature for elevations
• “Use Optimized View Navigation” setting that significantly improves performance
• Place an Air Terminal directly on the side of a duct
• Several enhancements to schedules
• Temporary view properties, especially nice for views with a fixed View Template

Like last year, this article will cover changes made to the Materials user interface (UI) and workflows that current users need to be aware of in order to efficiently use the 2014 family of Revit products.

Another New Material Browser

Autodesk listened to their user base and made several changes to the way we work with materials. The image below shows the initial state of the Material Browser. We are back to a single material browser with tabs for Identity, Graphics and the assets (Appearance, Physical and Thermal). When CustomParameters are present, a small icon will appear in the lower left as shown below.

If a material does not have an associated asset, you can click the “+” icon to open the Asset Browser and add one.

The initial Material Browser view has the standard Autodesk library completely hidden to maximize the list of project materials. In the image below, notice the toggle to make the external material libraries visible (item A). Also, the list of options to sort the material list is nearly identical to last year (item B).

Duplicating a Material

It is important to know how to properly duplicate a Material in your model so you do not unintentionally affect another Material.
In this example, we will duplicate the material, Carpet(1). When this material is selected, we notice that the Appearance Asset (shown by #2) is not being shared with any other materials in this project. This is evident by the hand with the zero over it (shown by #3). As with previous versions, we simply right-click and select Duplicate (shown by #1) to create a copy of the selected material.

If you Duplicate a Material in your model, the Appearance Asset will be associated with the new Material and the Material you copied it from!

Note: This is also true for the Physical and Thermal assets if they exist in the original material.

Now that we have duplicated a Material (shown by #1), notice that the two carpet materials in this example now indicate they both share the same Appearance Asset (shown by #2, named Red). Changing any of the properties for Carpet(2)’s Appearance Asset will also change Carpet(1). If you want to change one material without changing the other, click the Duplicate this asset icon in the upper right (shown by #3).

Once the Appearance Asset has been duplicated, you can expand the information section and rename the asset (shown by #4). You can now make changes to this material without affecting other materials.

Rather than duplicating the Asset you can also replace it from the Asset Library. This will not change any other materials. Simply click the Replaces this Asset icon shown below.

Class – A Lost Feature Restored

Like the tabs, the ability to filter materials by a user-definable “class” has been returned to the user in the 2014 version.
Looking at the Identity tab, we see the Class drop-down list. We can pick from this list or type a new class name. On the left, above the Project Materials list, we can filter the list by the class parameter.

When an external library is visible, we can also filter by Class as shown below. Notice the added “bread crumb” reference as to where you are in the tree structure. The drop-down arrows in the “bread crumb” area helps to quickly jump around. This is much easier than navigating the tree structure on the left. If you think so, you can toggle off the tree structure with the icon to the right of the “bread crumb” area.

Conclusion

The Material Browser dialog in Revit 2014 is much cleaner and easier to navigate. With this and the performance enhancements around materials, most users should be pretty happy working in Revit 2014! However, it would be nice if we had a command called Duplicate Material and Assets to streamline that process when needed.

What's new Revit 2014 (by David Light)

GREAT writeup by David Light over at Revit

 See below:

What’s new in Revit 2014?

Revit 2014, what’s new? What’s been improved? So these are the highlights, but like any release of Revit you will find minor tweaks here & there, some which get documented, others that don’t, so be on the look out! I have reviewed the architectural & general platform enhancements, however I have also listed the structural & MEP improvements, but do not go into detail in this review.

• Displaced Views
• Dockable Windows Framework & Enhancements
• Material UI overhaul
• Non rectangular crop regions
• Room calculation Point
• Schedules
• Selection enhancements
• Split Elevations
• Temporary View Templates
• View navigation performance
• Multi Selection - bring to front & send to back
• Stairs & Railings
• Double click to edit
• Point Clouds

The specific structural improvements include:-

• Multi-Reference Annotations
• Structural Analytical Model Improvements
• Reinforcement Rounding
• Rebar Constraints
• Welded Wire Mesh Constraints
• Enhanced Rebar Shapes
• Rebar Length Calculation for UK Shapes

The MEP improvements include:-

• CSV File Removal - Ability to embed CSV data into a family.
• Divide System.
• Air Terminals on Duct - Ability to place Air Terminal families directly on Duct segments.
• Plumbing Template
• Cap Open Ends
• Angle Constraints

Building Performance Analysis

• Energy Analysis for Architectural Building Elements - Ability to automatically generate an Energy Analysis Model from a typical Revit model made of architectural building elements.
• GBS Analysis App Feature

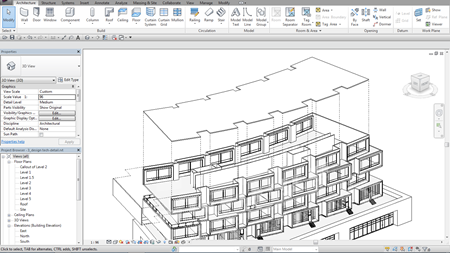

Displaced Views

Displaced views are an exciting new feature which literally allows you to rip apart your model as an exploded view. The clever thing here is that any displacement of components is only affected in that view & not the whole model.

The feature works in 3d views & perspective views only, allowing you to create diagrammatic assembly views of how the building goes together. The concept is very easy to implement. Go to a 3d view, select a few elements, then choose the displacement feature from the modify tab > create. Then in canvas use the 3d widget to drag the components away from the main model, it’s that easy. If you are not happy with their position, a reset button allows you to return the elements back to their original location. The path feature allows you to automatically draw a line from the original position of the elements to its displaced location. You can control the linestyle of this line from objects styles & visibility graphics.

Another thing about the path feature which may not be that obvious is that there are 2 path style types. A straight line (the default) & a jogged line type, which is useful when you need to drag the elements further away from the model for clarity.




Dockable Windows Framework & Enhancements

When you are using Revit you just can’t get enough screen real estate. You decide to get 2 monitors, but space always seems to be at premium. I am not sure why, but I guess it’s natural when you have a multi document, multi view application. In previous releases of Revit you could dock the project browser, properties palette, system browser & reconcile hosting browser in different locations but they always docked adjacent to one another or at various positions around the screen. Revit 2014 now allows you to dock each window to combine them as tabs at the bottom of dialog windows. OK, it’s not a massive enhancements & auto-hide would have been a nice addition as well, but this new window framework structure will certainly benefit those that are tight for screen space or utilize a-laptop.


Materials

So after last year’s fiasco with the material UI, Autodesk decided to go back to the drawing board. A good friend of mine & fellow Revit Guru, Aaron Maller literally lost hours of sleep trying to get his head around the Revit 2013 material user interface to make it work like 2012! If you know Aaron, buy him a beer & he will literally rant for hours about the mess which is the Revit 2013 material UI. I am not sure what Autodesk were thinking, but I am so glad to say that the 2014 UI is soooooo much better. Everything is obvious, in a tabbed layout dialog. The UI is easier to navigate making materials easier to locate & select. In 2013 the material browser & editing dialog boxes where separate which, was the core issue to the problem! This made the whole process of material editing unbelievably frustrating as workflow process was confusing. With both material browser & editing now merged back into one single common dialog, stability & common sense has returned to the material editing process. Yes!

Non Rectangular Viewports

So non rectangular viewports have been on my Revit wish list for some time. In Revit 2014 we now have this added functionality for view crop regions and callouts. In essence the user can customise the shape of the crop region using Revit sketching tools.

Select the crop region, then choose the Edit Crop tool from the ribbon & sketch away. But before you get too excited, you are still only limited to rectangular shapes, no curves are arcs my friends. This feature will work on any crop region including plans, ceilings plans, elevations, sections, detail & section callout views.

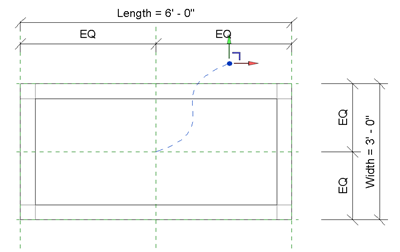

Room Calculation Point

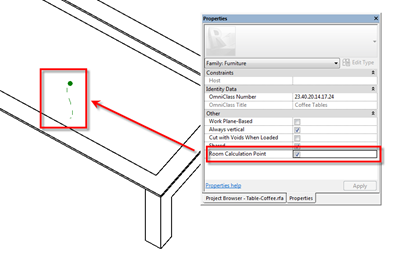

Once you have been using Revit for some time, you recognise that Revit needs to start to think a little smarter; it should know where things are. Whether you think software should be smart, is a debate for another day. But the introductory of a Room calculation point setting for family types which are room aware such as doors, furniture, casework, speciality equipment and generic models starts to help. This new function allows families which are placed in a project to know where they belong.
For instance sometimes, a piece of geometry might be located outside a room or space, which results in no values being reported to where the element actually is. The new Room calculation point allows the user to specifically move the location of the calculation point to a desired space within a model so that the element then knows where it belongs and can report this when scheduling.



Schedules

Schedules; What would we do without schedules in Revit? They provide us with access to data in a way which was not possible using traditional CAD drafting approaches. I would suggest that anybody who is serious about building information modelling will know the power & possibilities that Revit scheduling functionality offers. Scheduling gives you access to data which you can utilise in many, many ways. We can capture integrated data; we can use schedules to input data. Neither the less, scheduling within Revit was not without its limitations, but Revit 2014 sees a major overhaul of the scheduling functionality. The interface for creating schedules in Revit remains the same, although new categories have been opened up, so we can now schedule architectural columns, detail items, entourage, generic models, grids, levels, pads, roof soffits, structural beam systems, structural area reinforcement, structural path reinforcement and structural fabric area.

Another nice minor enhancement is the ability to schedule phases created & demolished. However, more importantly we are provided with far more control over how we can format schedules. Text styles can be used to control the formatting of titles, headers and data within a schedule. Cells and text appearance can be overridden for cells in titles sections and columns. The Schedules are far more aligned with an Excel type appearance, so what you see is what you get, with more alliance between the schedule view & what you actually place on a sheet. You will find a new ribbon interface allows you to control the appearance of the schedule and if you understand the basics of Excel style column formatting, then this is going to be a total breeze for you to learn and implement.


Selection Enhancements

I believe one of the biggest challenges any new user has when starting to work with Revit is the way you select elements. Those that have been using Revit for some time, have learned to live & adapt to Revit element selection peculiarities. But I have seen countless occasions when Revit newbies select elements & screw things up. No fault of their own, it’s just a different process from what they are normally used to. Yet Revit does not make it easy during the transition process. To improve the way you can access & select elements, Revit 2014 has introduced a few improvements adding to what has always existed. There are now four selection options, which can be accessed via the modify tool or via the status bar. Each options has two states, either active or in-active. The options included Select Links, Select Underlay Elements, Select Elements by face, Drag elements on selection. With the select links function, if this behaviour is not enabled & you use the modify & move tools, this stops you accidentally selecting links or CAD linked files. Select underlay elements, again if this is not enabled, then you can’t select, modify or move underlayed elements.

Select elements by Face, now this is a biggie for me. With this feature enabled you can select a face of an element or by clicking at the edge. This now makes the whole process of editing, say a floor, a lot easier as you can select the face rather than having to grab a bunch of elements & filtering. If you don’t have this feature enabled, then it’s as it was before, you need to click on the edge of element or filter & select. Drag elements on Selection replaces what was press & drag. With the feature enabled, you hover over the element, press down the mouse & drag. Revit will then move the element. If this feature is not enabled. If you hover over a model elements, AC point, callout, grid, section, scope box or detail, pressing and dragging will result in the element NOT moving. It should also be noted that the settings are stored per user in the Revit.ini, so can be set as part of your deployment.




Split Elevations

Not sure this is noteworthy, but we have been able to do split sections for some time. But the functionality has been extended to elevations, allowing us to do split elevations. Now before you get over excited, it’s not what you think it is! It the same as the section tool, that’s it. What would have been very nice to see is the ability to unwrap elevations to create true elevation representations!


Temporary View Properties

Revit 2013 introduced some welcome improvements to view templates; the Temporary View Properties feature on 2014 takes this a little further. In the view control bar you are provided with access to Temporary View Properties. What this feature does is always you to change the view properties of a view without impacting the saved view state. The concept behind this is to potentially reduce the need for working views as you can quickly enable a Temporary View, apply the view template to better understand the impact of the view template without actually having to apply it. You can switch between different view templates which you have created & once you have finished, just select the reset feature to go back to the original state of the view. If you do enable the temp view, it has no bearing on the view for printing & also has influence on the view when using worksharing.



Perceived Performance

If I had a pound or even a dollar for how many times I’ve heard users complain about how slow Revit is at times, I’d be a very rich man. The reality is, on some tasks Revit can be slow, but then if you consider what is happening under the hood, then maybe you might assess the situation differently. But then again, the reality is we want everything instantly! We want out email now! We want everything on tap, on demand & we no longer accept waiting. Over recent years we have seen multi-threading functionality introduced to some aspects of Revit. Speaking with the development team, it’s not a case of just flicking a few switches & tweaking the code to make Revit suddenly become a super multi-threaded wonder app. It’s a complex problem, due to the way Revit works. Saying that, one area which Revit certainly needed a kick was on screen redraws when zooming, panning & orbiting a model. So the Revit dev team have made some tweaks to improve graphic performance by automatically turning off graphic intensive effects during view navigation. This works in 2d & 3d. What actually happens is that the graphic effects are suspended during camera manipulation & then instantly redrawn to the screen once you finish the operation. It’s a little disconcerting at first, but once you get us to it you will value this improvement, Revit certainly feels quicker.


Multi- selection

A minor enhancement, but a vital one, is the proper implementation of the Bring to Front / Send Back ward tool. This now works as you would expect it. When you select multiple elements, be it detail elements or images you can reorder them correctly.



Stairs & Railings

As this review is typically biased towards the architectural enhancements, we will look at these. With Revit 2013, we saw the introduction of the new component based stair as well as enhancements to the railings. Revit 2014 sees the component stairs developed even further with a few minor tweaks to the railings. The way a stair joins a floor or slab has been improved. Any precast stair can now be join to a floor or slab. You can now quash the additional riser created in a plan representation when a monolithic stair meets a landing.

There have been developments made to the way you manipulate landings. Each landing, when selected, has controls to each edge which makes the process of editing the landing a lot easier.
When you draw a stair, two additional location line options are provided. You now have exterior support left & exterior support right as well as actual run width settings. These can be set in the options bar when creating the stair.

Autodesk put a lot of work into how stairs were represented with the component based stair. But as ever, things can always be improved. With 2014, the stair path arrow can now be displayed at top of landing. With the monolithic stair, the plan representation stair no longer displays an additional risers at half landings. The way snaps work with stairs also receives some advancement. For example, we can now have a parallel snap, allowing us to reference other elements such as reference planes, walls, beams when you are creating straight stair runs. Another snap enhancement is the ability to parallel snap to riser lines when dragging the direct manipulation controls of a landing. All these snaps just provide a better fit / finish when working with the stair creation process.

One of the first things I noticed with component based stairs in Revit 2013, was the loss of temporary dimensions. Love or hate them, they are fundamental to the Revit modelling process in my humble opinion. Temporary dimensions are your best friend when making changes or tweaks to elements. With Revit 2014, Autodesk dev temp have listen to user feedback & component based stairs get temporary dimensions to control landing size, component position, stair width & radius of spiral stairs.

Sadly we haven’t seen any further enhancements to railings in 2014, but we do get some defects fixed, such as if end with riser is unchecked the railing will now be parallel with the stair run. Handrails would disappear in some views, this has been addressed.

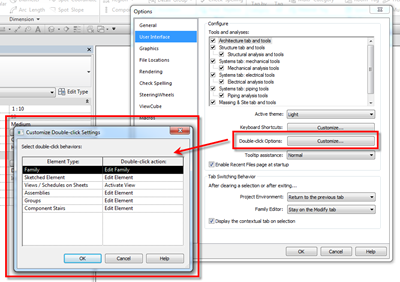

Double Click to Edit

Maybe, I’m old school, but 2013 saw the introduction of double-click functionality to edit certain elements, after many user requests. But with any enhancements, sometimes there are trip hazards. Users who are rather trigger happy with double clicking end up going down rabbit holes as they end up editing something they didn’t mean to. But with care & precision, you learn to adjust. In line with functionality introduced into Vasari as well as Revit LT, we can now edit the following elements by double clicking.

Element type	Double-click behaviour
Assemblies	Edit assembly mode
Schedules on Sheets	Open schedule view
Views on sheets	Activate view
Wall(EditProfile)	Edit profile
Floor(EditBoundary)	Edit boundary
Ceilings(EditBoundary)	Edit boundary
Roof (Footprint)	Edit boundary
Roof (Extrusion)	Edit boundary
Slab (Edit Boundary)	Edit boundary
Beam System (Edit Boundary)	Edit boundary
Railing	Edit railing
Stairs	Edit stairs
Edit Extrusion (Form)	Edit form
Edit Revolve (Form)	Edit form
Edit Sweep (Form)	Edit form
Edit Swept Blend (Form)	Edit form
Edit Blend (Default to edit Base)	Edit base
Truss (Edit Profile)	Edit profile
Rebar	Edit rebar
Reinforcement	Edit rebar
Opening Cut	Edit sketch
Filled Region	Edit sketch
Revision Cloud	Edit sketch
Split Face element	Edit sketch

So to protect those that may be a bit too hasty when using the double click functionality; in the options, the user can now customise the double click settings.

One other minor, but useful tweak is when editing a parameter in a tag, a parameter takes priority when you double click on a parameter label.


Point Clouds

Laser scanning & data capture is now common place to the BIM process. There are plenty of surveying firms & even contractors using laser scanning equipment, as the cost of ownership has reduced, to capture large quantities of data about buildings as point clouds. This data, albeit it huge in size, is being used for modelling of existing conditions as well as cross referencing the Building Information Model (design intent) against what is built on site. Revit has had the ability to link in point clouds for some time, but Revit 2014 sees the implementation of a completely new engine.

What this is, is the inclusion of the Alice labs acquisition within Revit. What I have tested is astonishingly fast, throwing a 5 gig cloud data file around in Revit was amazingly smooth. Linking the point cloud into a Revit project is exactly the same, but there are more point cloud file types available. You do need to index the point cloud data structure for the engine before loading it in. If you select a raw dataset to be inserted into Revit, you will be asked to index the data. Once indexed the resulting RCS file can be linked into a Revit project. Crop regions & sections box tools allow you to control the visibility of the point cloud. But with visibility graphics you can also override the colour mode of the point cloud.

There are 5 options available for colour modes of the point cloud.
<No Override>: This will display the point cloud in the colours specified in the source file, if they are available.
Single Color: will displays all points in the point cloud in a single colour that you can specify.
Elevation: will display the points in the point cloud using a gradation of colour between the 2 colours (Max Elevation and Min Elevation) that you can specify.
Intensity: displays the points in the point cloud using a gradation of colour between 2 colours (Max Intensity and Min Intensity) that you can specify.
Normals: displays the points in colours relative to the direction of the point normal (the direction of reflectance of points when initially captured). For example, all points with a normal direction "up" will have a consistent colour.
You can still snap to planes detected within the point cloud when using snap functionality, but we still have some way to go before we can start to automatically convert point cloud data into smart objects. This will come, but for now just being to reference reality into a BIM environment starts to close yet another gap in the BIM process.


Some of the other paraphernalia

So included below are few other enhancements which are worth knowing about. Not earth shattering, but they all go a long way to the fit & finish process of existing functionality.
When you divide a surface in the conceptual massing environment, you can adjust the u/v angle with the align tool. You can specify a default divisions to surface settings, which will be retained in the project for subsequent uses of the divide surface tool.

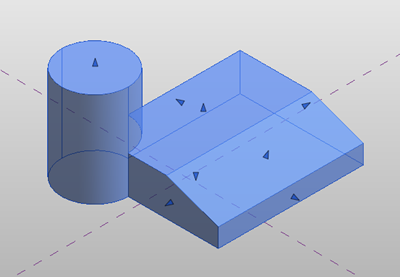

This one I am genuinely excited by. When you import a solid into a family, you have the ability to fully explode the solid. What this actually does is turn this into an element which you can actually do something with! Whilst you can’t actually edit the form, you can manipulate the resulting freeform elements with direct manipulation handles. You can also cut, join the geometry with form functionality tools. Now all we need is Revit to be able to read parameters from other tools!

When working in the conceptual massing environment, you can use a 3d start – end – radius Arc, which creates a 3d arc. The points of the arc can be hosted on reference geometry.

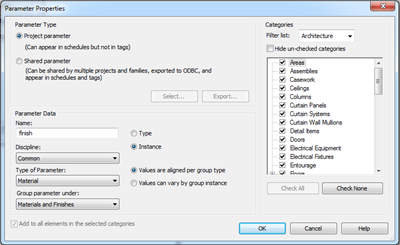

To solve a particular COBie requirement, you can allow parameters to vary between groups. You can control values so they are aligned per group type or values can vary by group instance.

There are a raft of minor tweaks to interoperability. Substantial work has taken place to ensure IFC export gets IFC certification in accordance with buildingSMART international standards requirements. DWF files now support textures, line patterns, lineweights, colours as well as sun paths. DWG / DXF export sees further improvements to how Revit dimensions export to AutoCAD. When a DWG or DXF file is linked into Revits project environment, import / links only list the views the imported / linked file appears in via the visibility graphics dialogue box. If you delete a view with a linked DWG file you can now re-establish a new reference view, rather than having to remove the linked DWG file & then re-link it in.
One other minor, yet critical improvement is the ability to control dual units in dimensions. Any dimension can display both units say metric & imperial. Just by simply going to the dimension style & enabling Alternate Units, then picking the Alternative Units Format you can display two different dimension formats in a dimension string.




Summary

So here endeth this year’s round up / sermon of new Revit functionality for the release of 2014. What do I think? Good…..actually very good. I’m not just saying that; there is some honest improvements to aging functionality which needed to be modernized as well as bundle of items which I would refer to fit & finish functionality. Sometimes you need that, so you can take stock and improve the whole user experience. I really like the displaced views tool, that’s a cracking enhancement in my opinion & schedule functionality update is very much welcomed. Alignment with how excel works & functions, is very nice. Revit 2014 feels snappier and smoother in operation. But…. there is always a “but”…..I want to see developments to site tools, nothing as dynamic as say Civil3d, just the ability to model proper roads, pavements & terrain. We need better ways to create & control railings & custom railings. I never thought I would say this, but text formatting! Autodesk, just do it. We talk up BIM, with plenty that are developing models, yet deliverables still remain 2d. Disagree with me if you like, but right now 2d information is not going to disappear anytime soon. Improving how we link in notes & formatting of text is something we just need to enhance to improve the overall fit & finish of the tool. Working in perspective views, can it be that difficult? Those kids over at Vasari team have cracked it. Non-photo realistic enhancements, squiggled line presentation views. More graphics card GPU enhancements & finally its time curtain walls got an injection of love. I don’t want much do I?
Music listen to when formulating this review - Above & Beyond anjunabeats vol. 10
http://www.anjunabeats.com/anjunabeats-volume-10-mixed-by-above-and-beyond-available-now#.UT__9Rwqx8E

Posted by David Light

Interesting 2014 tid-bit from Luke @WRW...

So, I  came across some beginnings of 2014 talk and since I hadn't posted anything in a while, I thought I'd at least share what I found. From over at What Revit Wants I read the following:

Thursday, March 21, 2013

Revit 2014 is coming

Today is the 21 March 2014.  Last year, the NDA was lifted on Revit 2013 around 27 March.  There have been whispers of Revit 2014 features getting released on the LARUG blog (my quick look found nothing - this was a dead link), over at Revit OpEd  (shown here:)

"Monday, March 18, 2013

2014 Predictions

It's nearly that time, the time when people starting asking, "When is the next release coming out?" or "What's going to be in the next release"? The LARUG blog announced two meetings next week (one in LA live streamed, the other in OC not) to discuss new features in 2014. That can only mean one thing, that the media blackout on the new Autodesk products is nearly over. Well it could also mean that they are going off the reservation and plan to discuss the new features without the blessing of Autodesk marketing...maybe but probably not.
So get your batteries charged, your reader cleared out because next week sometime Revit 2014 will trend on Twitter. :)
My prediction for 2014? It will still be called Revit."


....and a few things happening on Twitter.  LARUG even has a little countdown widget to - guess which date - March 27, 2013........

and so it begins - MORE TO COME!!!!

Free Revit Journal file Cleaner tool from Dante van Wettum

Free Revit Journal file Cleaner tool from Dante van Wettum (what revit wants)

Hey Luke.
Here a small tool i made to clean op the journal files that revit leaves behind on the computer.
It seems it doesn not clean these files out of itselve, and can take up a lot of space on the computer pretty fast.
If anyone sees room for improvements they can use the contact button to mail them top me, so i can put it in a next version.
As gmail/hotmail wont let me sent a zip with an exe in it (install file) i uploaded it to my site, and can be downloaded here:

http://www.aqua-page.nl/dls/dls/download.php?fname=./other/RevitJournalCleaner_Setup_2.0.2.zip

Attached in this mail is a screenshot

Kind regards
Dante van Wettum
The Nederlands

Revit 2013 Hotfix Available

heads up from The Revit Clinic :

Revit 2013 Hotfix Available

A Hotfix for Revit 2013 has just been posted. It addresses issues in two main areas:

Part Family:

• Prevents data loss during upgrade of families containing specific material parameters.
• Improves stability and memory usage within graphics display.
• Improves vector print output of transparent elements and masking regions.
• Prevents accidental data loss during cancellation of the in-place family editor.

Revit Server:

• Revit would occasionally report that an operation could not be completed when attempting a worksharing operation after a period of inactivity, if Riverbed devices were used in conjunction with Revit Server. A subsequent retry of the operation would then succeed. When this hotfix is applied to Revit, this behavior is eliminated. No changes to Revit Server are required.

Make sure that Update Release 2 has been applied prior to adding the Hotfix. Verify that the build number of Revit 2013 is 20121003_2115.


The Hotfix is available here:

Hotfix - Autodesk Revit 2013 - Server and Part Family



Edited to add the instructions from the readme file below.....

Installation Instructions

NOTE: You must have administrative privileges on your Microsoft^® Windows^® operating system to complete the installation process.

NOTE: You must have Autodesk Revit 2013 Update 2 installed on the system in order to apply this hotfix.

Preparing for Installation

1. Download and unzip the appropriate version(s) of the hotfix.

To Install the Hotfix on Revit

For each instance of Revit:

1. Shut down Revit.
2. Locate the Program folder beneath the program root of your Revit installation.  Ex. C:\Program Files\Autodesk\Revit 2013\Program\
3. Locate the files at the root of the hotfix location.

For each file in the hotfix, locate the corresponding file in the [Revit install root]\Program\ folder of your Revit installation.  (This folder can be found beneath the Program folder of your Revit program root.).  Append the extension ".orig" to each file and copy the new version from the hotfix folder.  In doing so, you will have renamed the old version of the file and replaced it with a new copy from the hotfix.

At this point, you will have renamed 7 files beneath the Program folder of your Revit install:

      [Revit install root]\Program\RS.Common.ClientServer.Proxy.dll

      [Revit install root]\Program\DataStorageClient.dll

      [Revit install root]\Program\DesktopMFC.dll

      [Revit install root]\Program\FamilyDB.dll

      [Revit install root]\Program\GeomUtil.dll

      [Revit install root]\Program\Graphics.dll

      [Revit install root]\Program\GrphOGS3.dll

4. Locate the RevitServerToolCommand folder within the hotfix location.

For each file in this folder, locate the corresponding file in the [Revit install root]\Program\RevitServerToolCommand folder of your Revit installation.  Append the extension ".orig" to that file and copy the new version from the hotfix folder.  In doing so, you will have renamed the old version of the file and replaced it with a new copy from the hotfix.

At this point, you will have renamed 2 files beneath the Program folder of your Revit install:

      [Revit install root]\Program\RevitServerToolCommand\RS.Common.ClientServer.Proxy.dll

      [Revit install root]\Program\RevitServerToolCommand\CommandServiceClient.dll
