Couple of new Revit 2015 features explained

A quick look at 2015 Revit feature.....SKETCHY LINES and Trim/ Extend MULTIPLE Elements!

Thanks to David Light over at REVIT for the latest!!



Revit 2015 – Trim / Extend Multiple Elements

This is a reasonably simply improvement. If you are laying out a lot of walls, quickly being able to trim & extend so they cleanup is an essential requirement for any designer, especially if they have come from a CAD background. Over a number of releases we have seen usability enhancements which have migrated their way to the Revit platform, based on tried & tested CAD methodologies. For instance if you have ever used AutoCAD you might have used the fence command. In Revit 2015 you can now use a selection box to select multiple elements to trim or extend to a boundary defined by another element. Note; you are still able to select individual elements to trim or extend. The video clip below shows the functionality performed on walls, but it will happily work on other elements such as structural beams. A simply, but time saving, valuable enhancement.

Sunday, April 06, 2014


Revit 2015 – sketchy lines

Sometimes when using BIM for presentation purposes, especially during the design development stages, the digital outputs can look a little too polished. In the past an architect might of used hand drawn sketches & diagrams to convey the design. New for Revit 2015 is the Sketchy Lines feature which emulates a hand drawn visual style. This feature is available to be applied to any graphic display style including 3d views, perspective views, elevations, sections & plan views.
You can adjust settings for Jitter and Extension to create unique interpretations of any visual style as shown. The Jitter slider allows to vary the weighting & clarity of the line as if you had drawn it with a pen or pencil, where as the Extension slider allows you to how far lines overlap at intersections. Check out Tim Waldocks detailed overview for more examples of how this feature can be used.

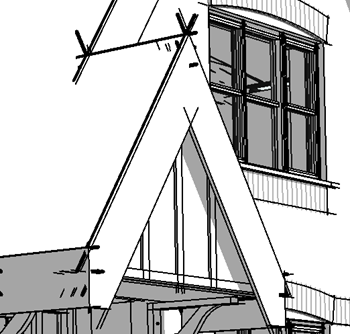

A 3d view with the Jitter set to 7 & no Extension:-
A 3d view with no Jitter & the Extension set to 10:-
The combination of the Jitter set to 7 & Extension set to 10:-

Thursday, March 27, 2014

New Feature List for Revit 2015

Great workup from Steve Stafford over at RevitOpEd

Big Stuff
Sketchy lines - yep, create sketchy alteration to views
Family parameter order adjustments - reorder/control parameter position
Schedules/material takeoffs - Access to Additional parameters and Grand Total customization
Revision improvements - Delete Revisions and more sketching options
View references - Reassign view reference to different view
IFC linking - Import IFC on Insert ribbon, IFC tab in Manage Links, no RFA process
Pinned element enhancements - Harder to delete pinned elements
Reinforcements for parts - Parts can host rebar (Structure)
Enhanced multi-rebar annotation - Grouping, sorting and updating of annotations (Structure)
Structural Disallow Join - Disallow/allow Joins framing and Braces (Structure)
Calculation methods for pressure drop - Haaland or Colebrook Equations, custom equations (MEP)
Tapped duct and pipe tags - Tag airflow along ducts (MEP)

Other Stuff
IFC imports - Better visual fidelity and performance and Options dialog revisions
Anti-aliasing improvements (related to Sketchy Lines)
Images in schedules - Instance and Type Image parameters can be used in schedules
Shared parameters in view titles - We can add our own parameters to view titles
Manage links dialog - Add links from Manage Links
Assembly code settings - 2010 Classification file provided or use our own
Enhanced hidden lines - View setting to govern hidden line display (Structure and MEP)
Building element analysis - Improved surface analysis and calculations (Subscription Only)
Tag improvements - Leader behavior mimics text leaders
Presentation rebar sets - Create sets to document rebar conditions better (Structure)
Reinforcement numbering - new numbering options (Structure)
Single fabric sheet placement - easy to place one sheet (Structure)
Shape Handles and Snapping - Improvements (Structure)
Setback for Structural Members - Improved adjustment (Structure)


Subtle Stuff
Ray trace usability improvements - faster, better quality and smoother
Views on sheets - Double click to Deactivate View (compliments 2014's Activate View)
Duplicate views - New naming of duplicate views
Keynoting settings - Keynote settings access easier, more obvious
Tool tips for family parameters - Create our own tool tips for parameters (max 250 char.)
Assembly code setting - Use alternate assembly code files
Tags can include new Elevation at Top Parameter (for Foundations)
Enhanced analytical model - Local Coordinate System, Loads and analytical links (Structure)
Location Line Visibility - New Graphics (Structure)
Graphical Justification - New control (Structure)
Structural section properties - Catalog for profiles allows for easier analysis(Structure)
Electrical API enhancements - Create wires, add/modify wire properties and remove vertices (MEP)
US AWWA content - New Waste Water project content(MEP)
Japan Localised electrical content (MEP)





Looking forward to it!
